8mm Waterproof Membrane - Clear HDPE - 40m²

Waterproof Membranes & Drainage

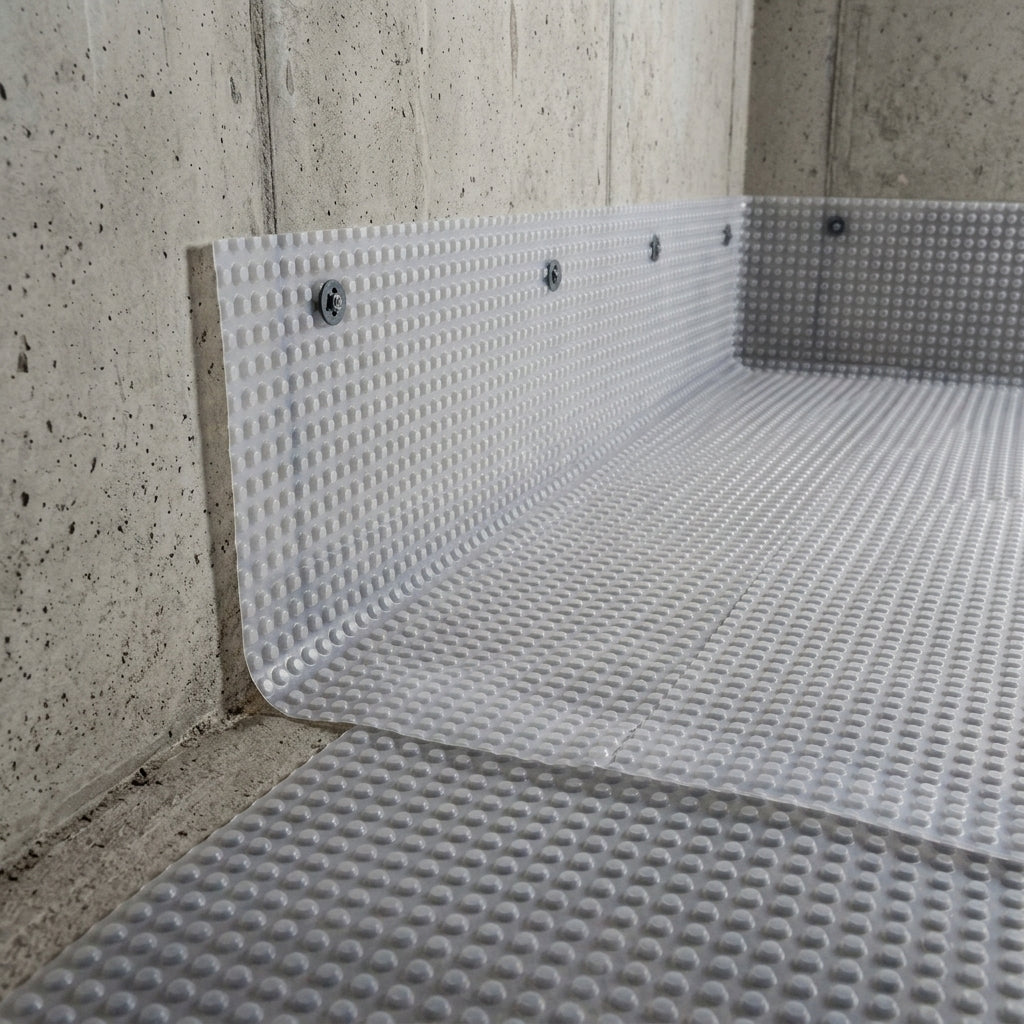

8mm Clear Cavity Drain Membrane 40m² Roll - HDPE, 20m x 2m

8mm stud, clear HDPE cavity drain waterproofing membrane on a 20m x 2m roll, covering 40m².

SKU RCD807

£326.80 incl. VAT

Key features

  • Resistant to salt water, vegetation and natural acids
  • Easy to install, with minimal wall surface preparation
  • Simple to cut to size with a sharp blade, fits uneven surfaces
  • No drying phase – redecorate immediately
Size: L 20m x W 2m x 8mm Stud Height | Coverage 40m²

Product details

Product description

This versatile, translucent internal cavity drain membrane is made from high-density polyethylene (HDPE) with an 8mm stud depth, for damp proofing and waterproofing walls, floors, soffits and vaulted ceilings in new and existing buildings. Suitable above or below ground on contaminated or damp backgrounds, it supports dry lining or flooring systems and is approved for Type C (drained protection) construction to BS 8102:2022. It is ideal for waterproofing basements and cellars, isolating damp in above-ground walls, and areas needing protection from high levels of water ingress.

It gives clear, highly stable waterproofing with excellent compressive load resistance. It withstands water, alkalis, saline solutions and organic acids, is unaffected by minerals, and resists bacteria, fungi and other micro-organisms, vegetation and salt water. Installation needs minimal wall preparation, it cuts easily to size with a sharp blade and conforms to uneven surfaces, and there is no drying phase, so you can redecorate immediately.

Type C protection: "Type C" waterproofing manages water ingress through a drained cavity system, with cavity drain membranes channelling water to a drainage system, often with a sump and pump. It is adaptable and effective for below-ground structures, giving a Grade 3 dry environment for residential and commercial basements and cellars. Full Type C protection requires a sump and pump system alongside this membrane, except where passive drainage is possible, and regular maintenance is essential throughout the system's life.

Application

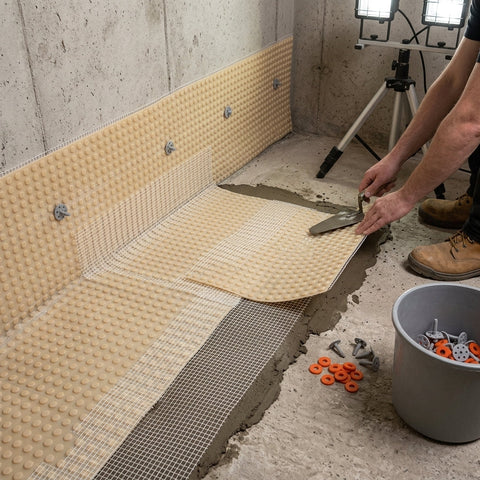

The membrane accepts a variety of finishes. Brick plugs are designed to take screws, so battens, metal lath systems and insulation can be added before plasterboard finishing, and fixtures, fittings, walls and staircases can be built directly off the membrane.

Wall/ceiling finishes (fixed with brick plugs): independent stud wall, timber frame or metal track; independent masonry wall; batten and board fixed to the plug heads.

Floor finishes (over a concrete floor): screed (minimum 65mm); tongue and groove flooring with an insulation spacer between membrane and boards; timber floor on fixed timber lattice supports; insulation with screed or tongue and groove flooring above; underfloor heating tray with screed above.

Please Note
  • Do not store or expose to freezing conditions or direct sunlight.
  • For below-ground waterproofing, the membrane must be integrated with a cavity drain system including sump and pump.
  • All drainage systems must be fully maintained throughout their lifetime.

Specifications

Size
L 20m x W 2m roll, 8mm stud height
Coverage
40m²
Composition
100% virgin high density polyethylene (HDPE)
Colour
Transparent
Total Weight
Approx. 500g/m²
Number of Studs
1710/m²
Compressive Strength
Approx. 200kN/m²
Water Drainage Capacity
Approx. 5.3 l/s m
Air Volume Between Studs
Approx. 4.5 l/m²
Temperature Resistance
-30°C to +80°C
Chemical Properties
Chemical resistant
Physical Properties
Safe for drinking water
Fire Resistance
Class E
Standard
Approved for Type C constructions to BS 8102:2022
