10m² Damp Proof Mesh Membrane 3mm Thickness

Waterproof Membranes & Drainage

Damp Proof Mesh Membrane 10m² Roll - 3mm Studded, 1m x 10m

10m² roll of lightweight 3mm damp proof mesh membrane for above-ground damp proofing of smaller wall areas.

SKU RCD118

£152.56 incl. VAT

Key features

  • 10m² mesh membrane roll
  • Effective internal damp proofing solution
  • Slim 3mm profile – easy to cut & handle
  • Built-in mesh for plaster or plasterboard
  • Exceptionally stable under high compressive loads
  • Resists water, alkalis, salts and organic minerals; impervious to bacteria, fungi and micro-organisms
  • Durable design with 50-year life expectancy
Size: W 1m x L 10m x T 3mm | Coverage 10m²

Product details

Product description

A lightweight, easy-to-install solution for above-ground damp proofing. Covering 10m², this slim membrane is perfect for smaller wall areas, giving lasting protection against moisture and salts, and its integrated mesh surface creates a secure base for dot and dab plasterboard or direct render application.

A premium mesh membrane developed for internal damp proofing of walls above ground. Once existing damp has been treated, it forms a protective layer that prevents further deterioration and salt damage. The mesh ensures a strong bond for a range of finishes, and the slim 3mm profile is ideal where working space is limited. Applied to moist walls, it separates them from new finishes, blocking both moisture and water vapour and creating a shield between the old wall and the new finishing layer, protecting damp walls against further salt build-up on the plaster and preventing damage to the wall.

Resolves the effects of salt contamination: salt-affected surfaces can look damp in humid conditions because hygroscopic salts in the wall draw in moisture, creating dark, wet-looking patches that are often mistaken for penetrating or rising damp. The membrane isolates the contaminated substrate from the new finish, removing these signs of moisture.

Made from translucent high-density polyethylene (HDPE), it is designed for damp proofing walls, floors and ceilings in new and existing buildings, above or below ground, on contaminated or damp backgrounds, and supports dry lining or flooring systems. The system is approved for use in Type C (drained protection) constructions to BS 8102:2022. As with all damp proofing and waterproofing projects, it should be integrated with a perimeter drainage and sump pump system.

Installation

Fix the membrane to the wall with Plaster Plugs or Brick Plugs. Seal each plug by wrapping Sealing Washers or Butyl Rope firmly around its head before hammering it into place, to create a waterproof seal.

  1. Clean the base to achieve the smoothest possible surface, removing any damaged, loose or disintegrating plaster.
  2. Trim the membrane to size with a sharp blade or scissors.

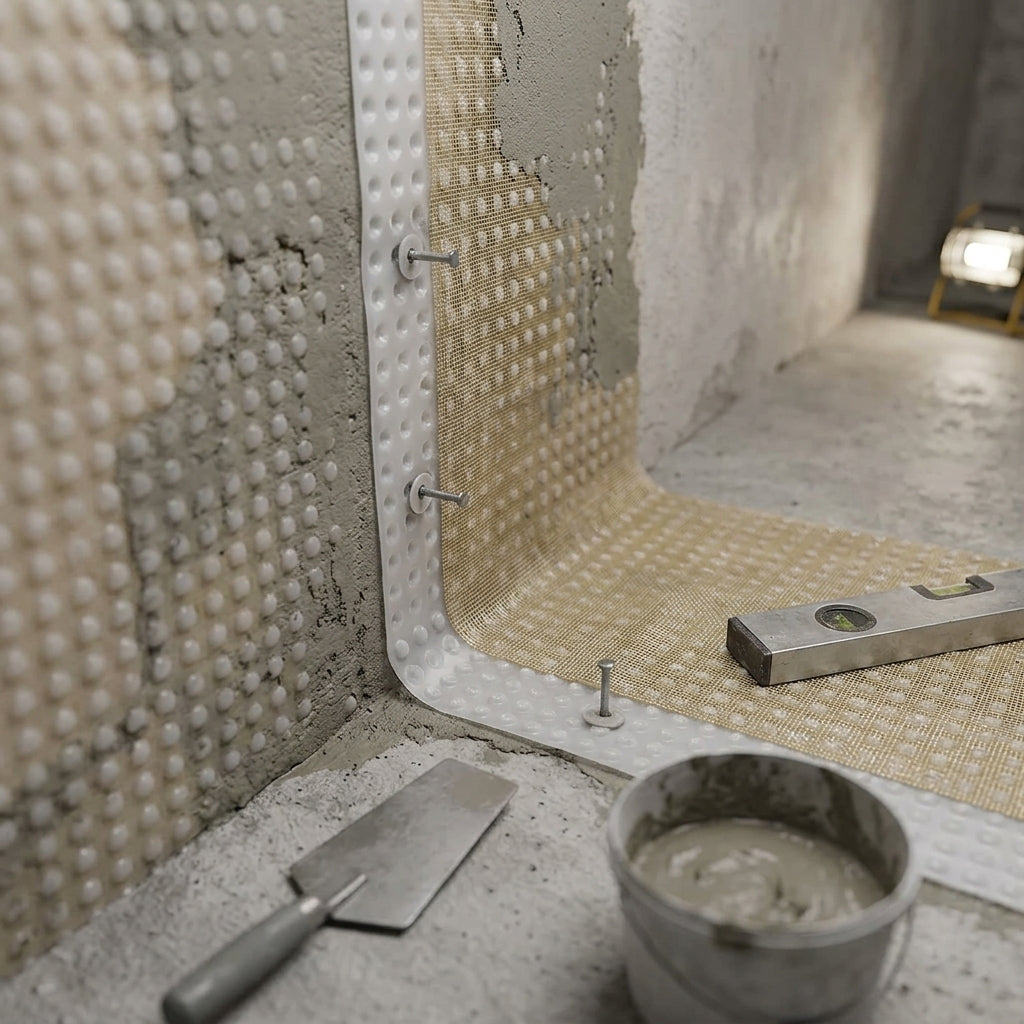

  3. Fix the membrane to the surface with the mesh side exposed, using the plugs. It can be installed horizontally or vertically.

Approximately 15 plugs per square metre are recommended, with no plug more than 250mm horizontally or vertically from the next. On curved or uneven surfaces, place the plugs closer together so that the mesh is not loose from the wall.

Jointing: the membrane is highly flexible and can easily be moulded around corners. Alternatively, edges can be butt jointed and made watertight with Fleece Overstrip.

Its square 3mm studs handle corner details and surface irregularities well, making it an excellent substrate for lime mortars, renders and plasters, and it gives a highly reliable waterproofing installation when paired with suitable drainage.

Finishing
  • Plaster finish: finish with standard plastering techniques using lightweight plasters such as a renovating plaster. Apply the first coat, filling the studs and covering the mesh, and scratch finish it before it sets, then apply a second coat to a final thickness of 15mm.
  • Dry lining / dot and dab: fix plasterboard panels with conventional bonding plaster in dabs at least 8mm thick, covering at least 50% of the board/membrane surface. This gives a dry surface ready for decoration.
  • Screed: alternatively, a 65mm sand and cement screed may be laid.
  • Once the plaster, dry lining, render or screed is dry, it can be painted or wallpapered using normal decorating materials and techniques. Keep atmospheric moisture below 70% RH during application.
Please Note
  • Do not store or expose to freezing conditions or direct sunlight.
  • All drainage systems must be fully maintained throughout their lifetime.
  • Do not lay impermeable floor finishes until the screed moisture content falls below 75% RH.

Specifications

Size
W 1m x L 10m x T 3mm (stud height)
Coverage
10m²
Composition
100% virgin HDPE
Stud Height
3mm
Total Weight
Approx. 500g/m²
Number of Studs
2500/m²
Colour
Translucent
Water Drainage Capacity
Approx. 0.86L/s/m
Compressive Strength
250kN/m²
Temperature Resistance
-30°C to +80°C
Chemical Properties
Chemical resistant
Physical Properties
Safe for drinking water
Fire Resistance
Class E
Standard
Approved for Type C (drained protection) to BS 8102:2022
Life Expectancy
50 years
