1 Litre Damp Proofing Injection Cream Kit

Everything you need to put a new damp-proof course into a wall with rising damp — cream, gun, nozzle and drill bit in one box.

SKU DPC002

£353.76 incl. VAT · per kit

In the box

  • 5×1 L injection cream cartridges
  • 1×1 L cartridge applicator gun
  • 1×Extendable injection nozzle
  • 1×12 mm SDS drill bit

How many kits for your wall?

Wall thickness
m

You’ll need

—

Treats
Rising damp
Injected into
Mortar bed joint
Formula
Solvent-free

Product details

Product description

Effective damp proofing solution for rising damp issues.

This injection cream kit is expertly formulated to create a new damp proof course in various wall types, even those with high moisture levels. Its quick installation process makes it an ideal choice for professionals.

Key Features

  • Facilitates the creation of a new damp proof course
  • Quicker installation than traditional methods
  • Clean, simple application with low-pressure injection
  • Solvent-free formula for safer use

Specifications

  • Volume: 1 Litre

Applications

  • Rising damp treatment in buildings
  • Restoration of moisture-damaged walls
  • Suitable for various wall compositions
Why cream?
  • Turns liquid once it’s in the joint, so it spreads deep into the mortar
  • Treating rising damp also cuts the heat lost through damp walls
How long it lasts

The new damp-proof course keeps working for as long as the treated mortar course stays intact.

Coverage per 1 L cartridge
  • 115 mm wall: 10 linear metres (drilled 100 mm deep)
  • 230 mm wall: 5 linear metres (drilled 210 mm deep)
  • 345 mm wall: 3.3 linear metres (drilled 320 mm deep)
  • 460 mm wall: 2.5 linear metres (drilled 430 mm deep)

Need a different amount?

Already have a gun? Buy the cream on its own.

PackCreamPrice
1 Litre Damp Proofing Injection Cream1 L£55.44
DPC Injection Cream 380ml for Rising Damp Treatment0.38 L£28.52
6 x 380ml DPC Injection Cream Kit2.28 L£108.24
380ml DPC Injection Cream Kit - 12 Pack4.56 L£184.78
20 x 380ml DPC Injection Cream Kit7.6 L£334.90

Before you buy

Is it really rising damp?

Injection cream only stops damp that rises from the ground. Condensation and leaks look similar but need something else. Tick what you can see.

What can you see on the wall?

Tick what you can see on the wall

This is a quick guide to the likely cause, not a survey.

How to install

A new damp-proof course in six steps

Cross-section of a brick wall: damp rises from the ground and stops at the injected cream band Dry abovethe new DPC Cream band Damp risingfrom the ground Outside ground Inside floor 1 6 2 5
Seen from the face of the wall: one hole every 100 mm or closer, along one joint.
Numbers match the steps.

Before you start

Fix any leaking gutters or drains. Take off skirting and wall finishes, and hack off salt-contaminated plaster up to 300 mm above the highest damp mark. Check floor timbers for rot.

  1. Pick the joint

    Choose a mortar bed joint at least 150 mm above the outside ground, or level with a solid inside floor. Inside and outside DPCs should line up.

  2. Drill the holes

    Use the 12 mm SDS bit. Drill level, no more than 100 mm apart, stopping 20 mm short of the wall’s full thickness.

  3. Clear the dust

    Vacuum or blow out every hole so the cream fills it fully.

  4. Load the gun

    Cut the top of the cartridge, fit the nozzle (extend it for thick walls) and load it into the applicator gun.

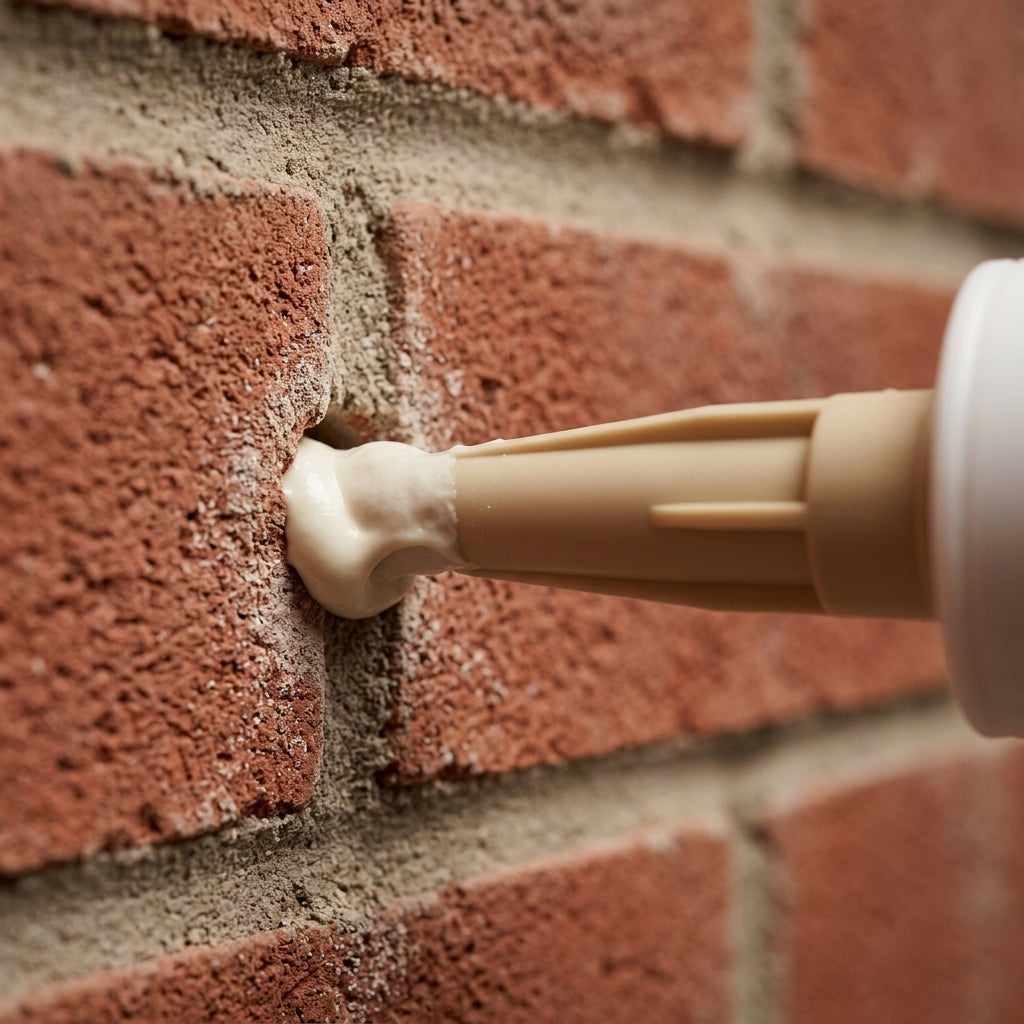

  5. Inject from the back

    Push the nozzle to the back of the hole and fill as you pull out, stopping about 10 mm from the face.

  6. Seal each hole

    Fill the last 10 mm with mortar or a DPC injection plug, then let the wall dry out before replastering.
